Corbin Sparrow

Also known as Personal Transit Module, “Jelly Bean”, Myers Motors NmG

One seat, three wheels and 13 lead-acid batteries, in a plastic teardrop 2.4 m (8 ft) long that could keep up on the freeway. It was registered as a motorcycle, and in 1996 its maker took more than US$1 million in deposits before he had a factory.

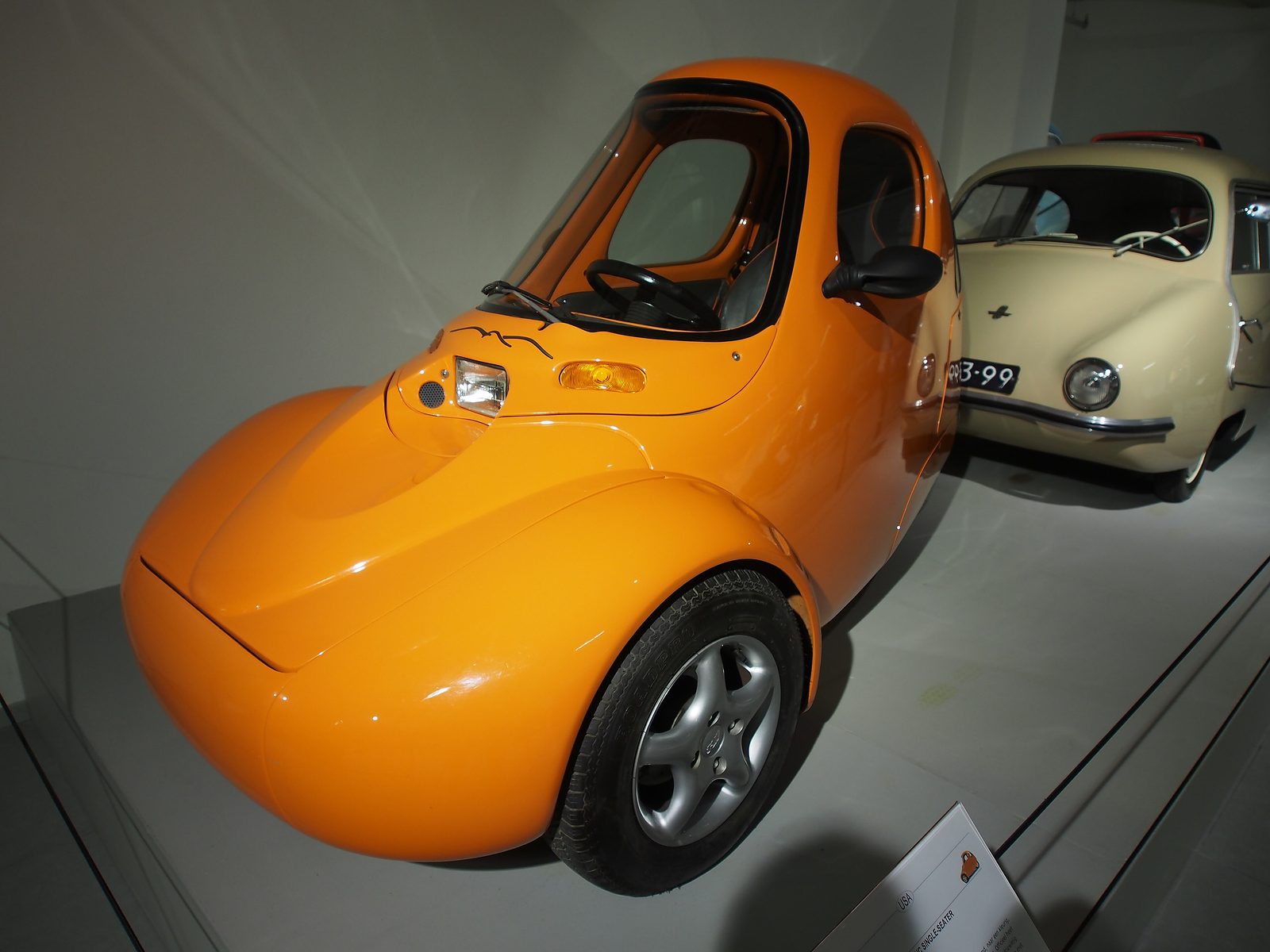

Orange single-seat three-wheeler with flared front wheel arches and a curved windscreen, on a museum floor.
An orange 2000 Corbin Sparrow ‘Jelly Bean’ from the front three-quarter at the Louwman Museum, The Hague, in January 2017.Photo: Alf van Beem, Public domain, via Wikimedia Commons

At a glance

The spec plate

Corbin Sparrow

Sparrow · Hollister, California

Built
1999–⁠2013Corbin from September 1999 to March 2003; Myers’s NmG from April 2006 to about 2013
Country
United StatesHollister, California; then Tallmadge, Ohio
Maker
Corbin MotorsMike and Tom Corbin; from 2004 Myers Motors, Tallmadge, Ohio
Engine
20 kW electric motor13 lead-acid batteries of 12 V; lithium in the NmG from 2009
Power
20 kWContinuous, in the NmG
Length
2,438 mm1,219 mm wide, 1,448 mm high
Weight
612 kgAlmost 272 kg (600 lb) of it batteries
Seats
1
Wheels
3Two at the front, one at the back
Price new
US$29,995The Myers NmG, June 2008, before tax and shipping; the Corbin price not found
Production
about 289Corbin’s Sparrows; about 30 more NmGs by Myers
Top speed
121km/h121 km/h121–129 km/h (75–80 mph) claimed; English Wikipedia gives the NmG 112 km/h (70 mph)

How big is it?

True proportion

2.44 m

It is 532 mm shorter than a Fiat 500, about 1.4 adults laid end to end.

  • 1.22 m wide
  • 612 kg: about eight adults
  • One seat
  • Registered as a motorcycle
Drawn at true proportion. The track is 3.6 metres long; the adult stands at the same scale. The Peel P50 is the smallest production car, on every page for comparison.

The story

History

Mike Corbin had won his high-school science fair with an electric robot, served as an electrician on the aircraft carrier USS Ranger and worked as an electrical subcontractor to Pratt & Whitney in the Vietnam years. In 1968 he founded Corbin Gentry, and by 1971 it was making motorcycle seats, frames, tanks and handlebars.source 1

Corbin Motors, the company he ran with his son Tom, began work on an electric car in January 1996.source 2 That year it showed the Personal Transit Module at the San Francisco auto show: one seat, three wheels, a body in plastic composite and a 20 kW motor, charged in six hours from a 110 V socket. Corbin claimed 121–129 km/h (75–80 mph), 40–80 km (25–50 miles) on a charge and a running cost of about a cent a mile, and in the week of the show he took more than US$1 million in deposits, with no factory and no staff to build it.source 1

A motorcycle with a roof

With two wheels in front and one behind, the Sparrow was a three-wheeler, and in law a motorcycle. Its owners needed a motorcycle licence and motorcycle insurance, but no helmet, because the rider was enclosed.source 1 Car crash-test rules did not apply to it, and it passed its final Department of Transportation certification tests in April 1999.source 2 In September 1999, by English Wikipedia’s account, the line at Hollister, California, was building cars; Makes That Didn’t Make It has production beginning in mid-1998, with deliveries from late 1999.source 2source 1 Corbin also built the Merlin, a petrol-engined three-wheeler, as a coupé and a roadster.source 2

The car is 2,438 mm (96 in) long and 1,219 mm (48 in) wide, and it weighs 612 kg (1,350 lb).source 3source 1 Almost 272 kg (600 lb) of that was 13 lead-acid batteries of 12 V, and they were its weak point: one failing battery could shut down the whole system, and the motor controllers failed too.source 1 No road test of the period has been found; the troubles are known from owners’ reports, as Makes That Didn’t Make It gives them.source 1 The original body, with its rounded tail, was nicknamed the “Jelly Bean”. A hatchback version, the “Pizza Butt”, was taken up by delivery services.source 3 It is one of the best-known American electric microcars.

About 289 were built, by the count of Makes That Didn’t Make It; English Wikipedia says fewer than 300.source 1source 2 On 31 March 2003 Corbin Motors filed for Chapter 7 bankruptcy, and the court passed its assets to Ron Huch’s Phoenix Environmental Motors, which tried to revive the car; there was talk of building it with SLP in Canada.source 2 Corbin looked back on it plainly.

a great idea… what they call a big hairy-assed idea, but we had a lousy business plan.

Mike Corbin, on Corbin Motors, as quoted in Makes That Didn’t Make It, 21 June 2020; when he said it is not recorded.source 1

No more gas

On 5 August 2004 an Ohio businessman, Dana Myers, bought the rights from Huch and formed Myers Motors at Tallmadge, Ohio. In April 2006 it put an upgraded car on sale as the MM NmG, for “No more Gas”.source 2source 3 In June 2008 it cost US$29,995 before tax and shipping, and in 2009 lithium batteries doubled its range to about 97 km (60 miles).source 3source 2 Underneath it was still the Sparrow, the same size and weight, with a 20 kW motor rated for continuous output, DC or three-phase AC. English Wikipedia gives it 112 km/h (70 mph), 32–64 km (20–40 miles) on lead-acid batteries and a consumption of about 130 Wh/km, which it puts at 162 miles per US gallon equivalent.source 3 Myers also announced a two-seater, the Duo, for “Doesn’t Use Oil”.source 2 In February 2013 the NmG disappeared from the “Buy your NmG” page of Myers’s website, and late that year the federal rebate for electric three-wheelers came to an end.source 3source 2 Myers built about 30.source 1 One source has Myers closing about 2006, but the price of 2008, the lithium cars of 2009 and the website of 2013 all say otherwise.source 1source 3source 2

Neither name let go. In 2012 Corbin announced a Sparrow 2, built to order, with lithium batteries, an 80 hp (60 kW) AC motor, scissor doors and a reversing camera; his website still described it as in “beta testing”, with orders planned for 2018, and whether any reached a customer is not known.source 1 Myers Motors became Myers EV in 2018 and took pre-orders for the Point5, a two-seat “half-car” with the seats in tandem, planned for late 2024.source 2

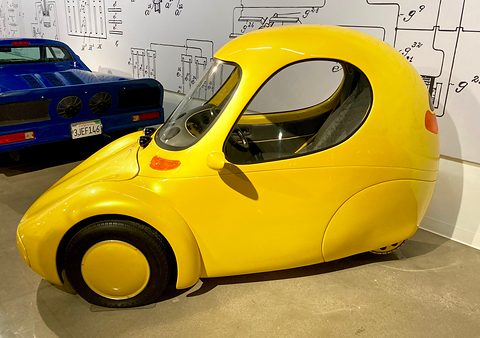

Side view of a yellow-gold teardrop single-seat car with a large door window and a disc-covered front wheel.
A gold Sparrow in profile in Los Angeles’s Petersen Automotive Museum, October 2021: a teardrop on two front wheels and one at the back.Photo: Bill Abbott, CC BY 4.0, via Flickr

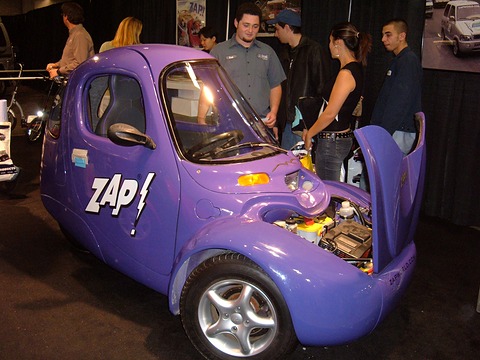

Purple three-wheeler with ‘ZAP!’ lettering and its nose panel lifted to show batteries and wiring, visitors behind.
A purple Sparrow in ZAP livery at a show in November 2004, its nose panel lifted on the batteries and wiring.Photo: BrokenSphere, CC BY-SA 3.0, via Wikimedia Commons
Bright green single-seater seen from the front with its door open, headlamps and amber indicators, on grass.
A lime-green Myers Motors NmG, the revived Sparrow, at the Renewable Energy Roundup in Fredericksburg, Texas, in September 2006.Photo: cara fealy choate, CC BY 2.0, via Flickr

Pictures

More photographs, old and new

Variants

Sparrow, NmG and the ones announced

The Sparrow and its successors
VariantYearsWhat differsHow many
Sparrow, “Jelly Bean”1999–⁠2003The original rounded tail; 20 kW, 13 lead-acid batteries of 12 VMost of about 289
Sparrow hatchback, “Pizza Butt”Corbin yearsA hatchback tail, taken up by delivery servicesThe split with the Jelly Bean is not known
Myers NmG2006–⁠13The upgraded Sparrow; lithium batteries from 2009, about 97 km (60 miles) of rangeAbout 30
Sparrow 2Announced 2012Lithium batteries, an 80 hp (60 kW) AC motor, scissor doors and a reversing cameraNot known whether any were built

Specification

The Corbin Sparrow, with the Myers NmG where it differs

Motor and batteries

Motor and batteries
Motor20 kWsource 3source 1The NmG: 20 kW continuous, DC or three-phase AC
Batteries13 lead-acid batteries of 12 V, almost 272 kg (600 lb)source 1Lithium in the NmG from 2009
ChargingSix hours from a 110 V socketsource 1
Driven wheelNot found

Body and chassis

Body and chassis
BodyPlastic composite, one seatsource 1
WheelsThree: two at the front, one at the back
RegistrationAs a motorcycle; no helmet needed, as it is enclosedsource 1

Dimensions

Dimensions
Length2,438 mm (96 in)source 3source 1
Width1,219 mm (48 in)source 3source 1
Height1,448 mm (57 in)source 3About 5 ft in another source
Weight612 kg (1,350 lb)source 3source 1

Performance and running

Performance and running
Top speed121–129 km/h (75–80 mph), as claimed in 1996source 1The NmG 112 km/h (70 mph), by English Wikipedia
Range40–80 km (25–50 miles)source 1The NmG 32–64 km (20–40 miles) on lead-acid, about 97 km (60 miles) on lithium
Running costAbout 1 cent a mile, as claimed in 1996source 1
ConsumptionAbout 130 Wh/km, the NmGsource 3
Price newUS$29,995 for the NmG, June 2008source 3source 2The Corbin price not found

How many were built?

Every figure, with its source

About 289 Sparrows, then about 30 NmGsMakes That Didn’t Make It gives 289, the only exact count from a narrative source, and English Wikipedia’s “fewer than 300” agrees with it. A figure of 285 is known only from a trade-press snippet that was not read. Myers built about 30 more as the NmG.

  1. fewer than 300Sparrows built by Corbin MotorsOne source

    English Wikipedia, on the companysource 2

  2. 289Sparrows built by Corbin MotorsOne source

    Makes That Didn’t Make It, 2020source 1

  3. 285Sparrows built by Corbin MotorsUnconfirmed

    Powersports Business, April 2003, known only from a snippetsource 4

  4. about 30NmGs built by Myers MotorsOne source

    Makes That Didn’t Make It, 2020source 1

  • Two sources agreetwo good sources give the figure
  • One sourcea good source, alone
  • Unconfirmeda lead only, not yet checked

Famous for

Three points

  1. A motorcycle in law

    Three wheels made it a motorcycle: a motorcycle licence and insurance, but no helmet, and no car crash tests.

  2. Freeway speed

    Corbin claimed 121–129 km/h (75–80 mph) from a 20 kW motor and 13 lead-acid batteries.

  3. Jelly Bean and Pizza Butt

    The nicknames of the original body and of the hatchback used for deliveries.

On screen

Confirmed appearances only

Survivors and collecting

Today

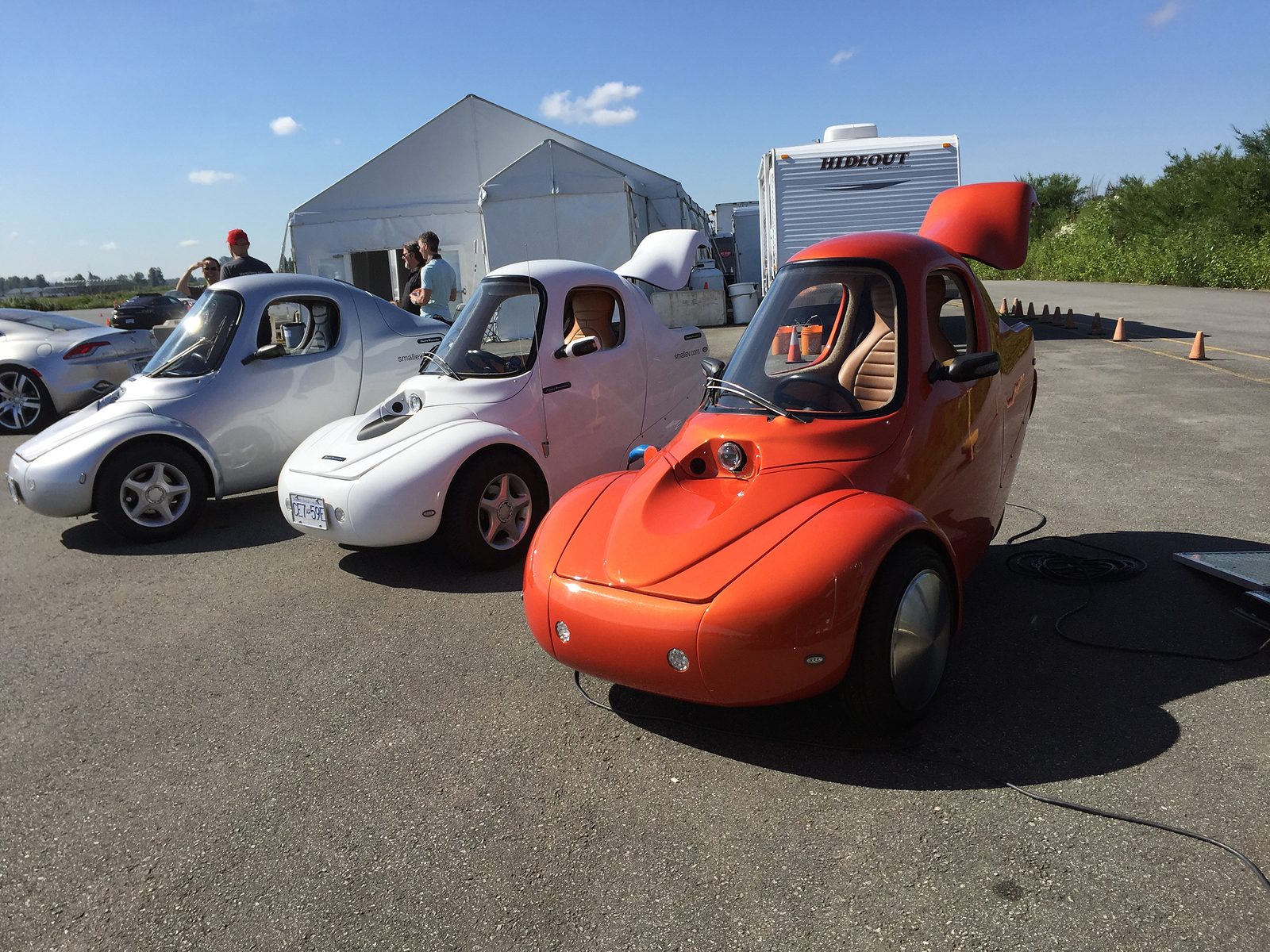

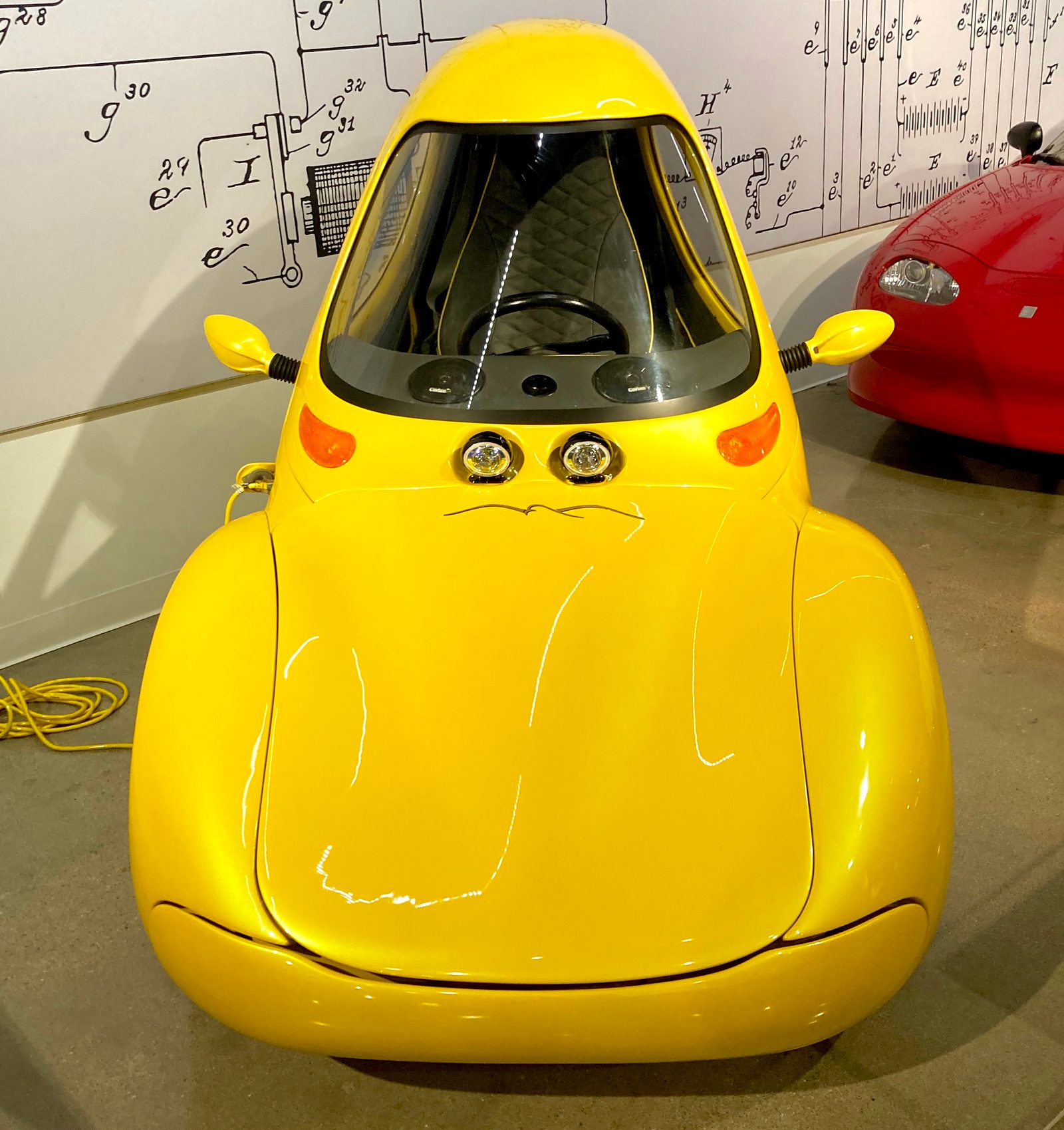

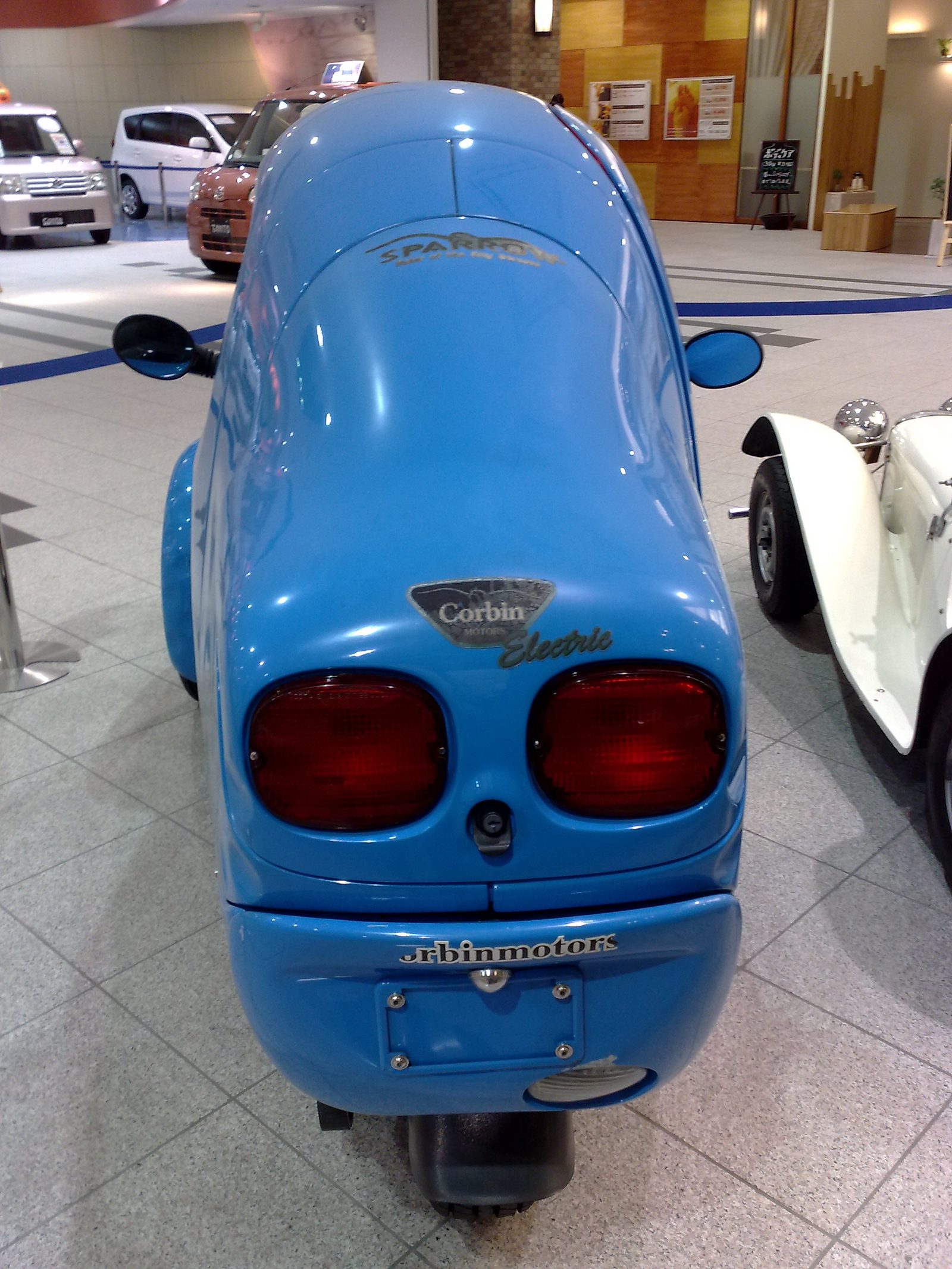

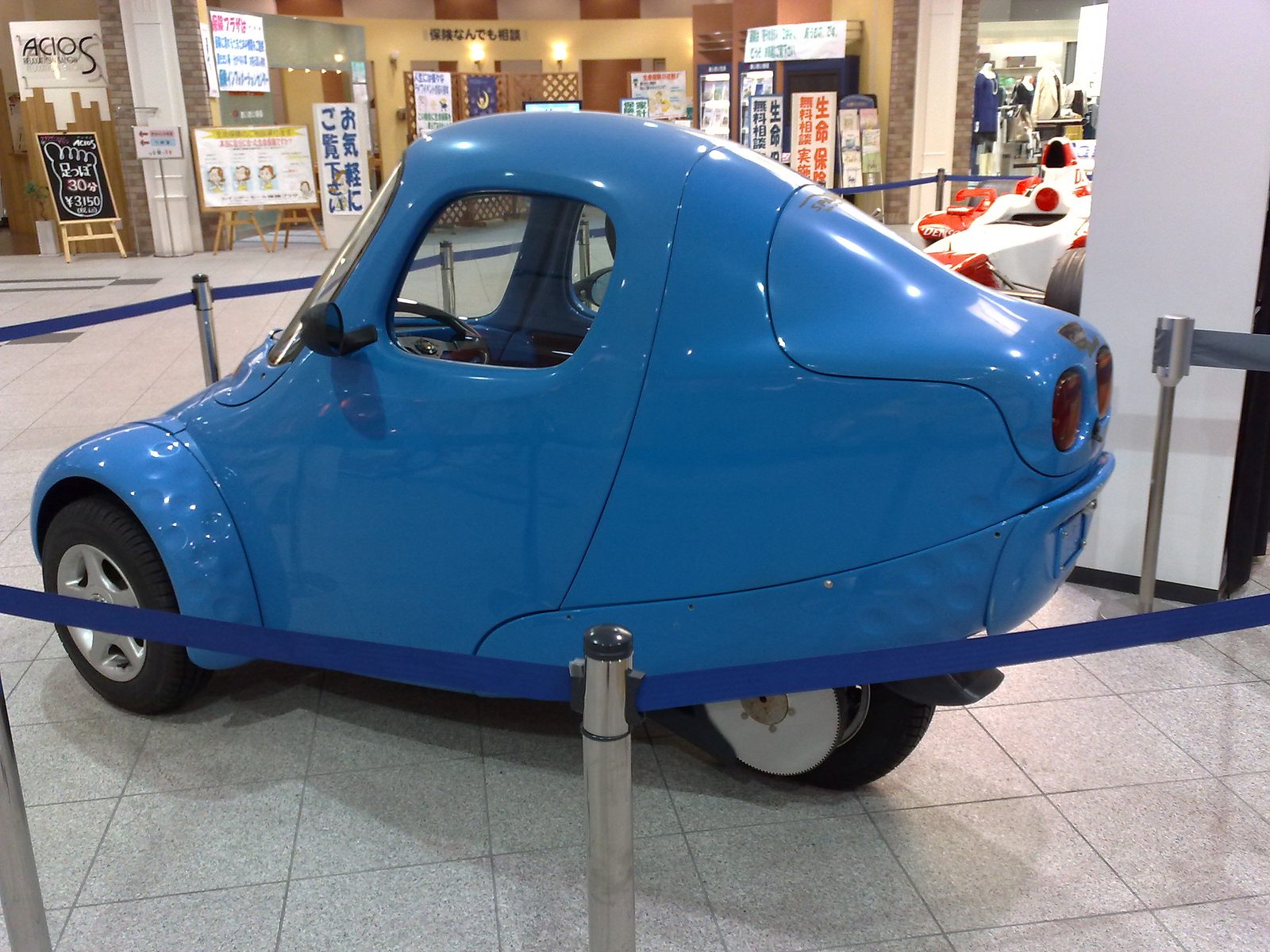

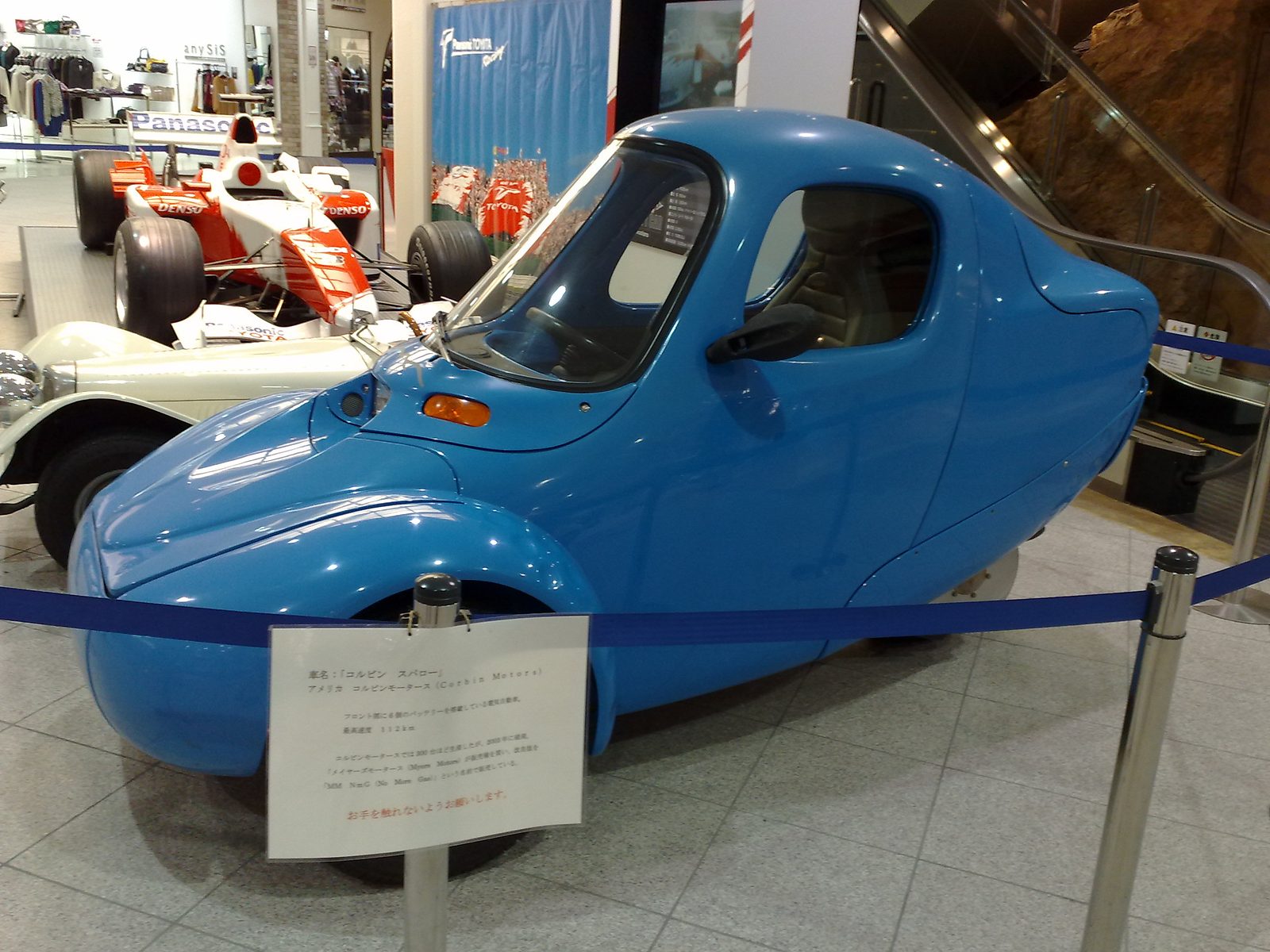

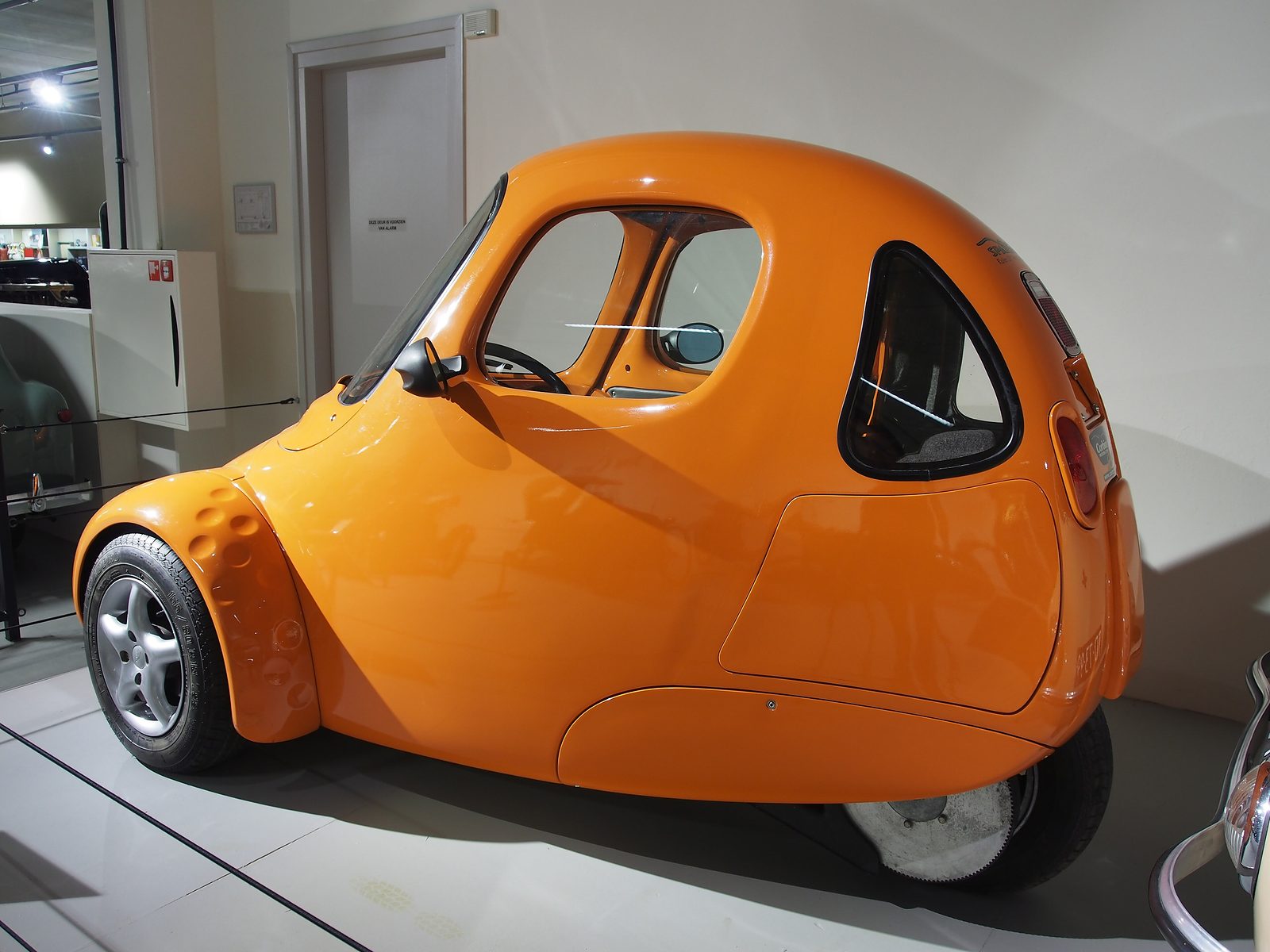

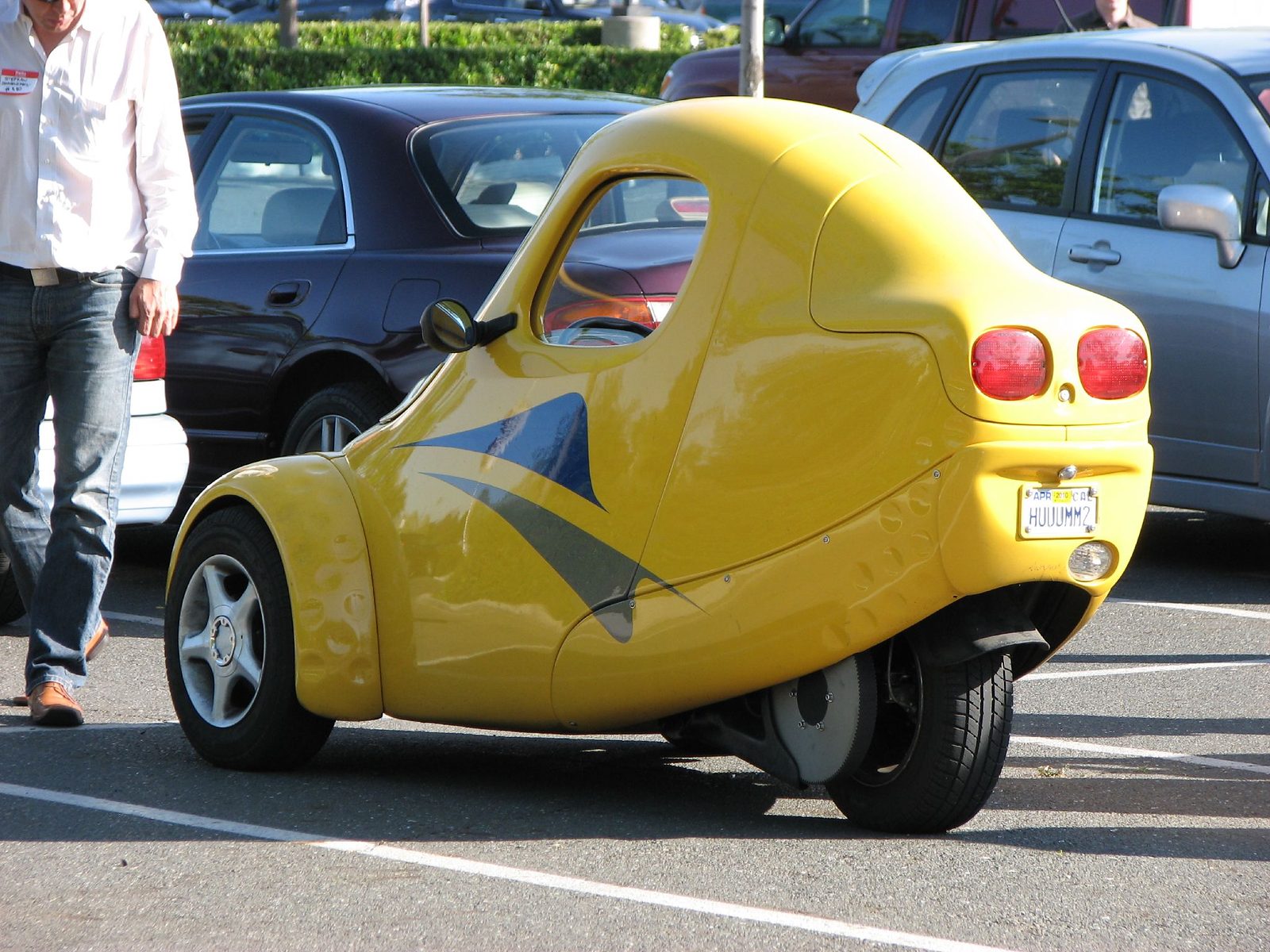

No count of surviving Sparrows has been found, nor any club or auction result. With about 289 Sparrows and about 30 NmGs built, there cannot be many. The photographs on this page show Sparrows in The Hague’s Louwman Museum, the Petersen Automotive Museum in Los Angeles and on display in Japan, and others still on the road in Seattle in 2012 and at an electric-vehicle meeting in 2016.

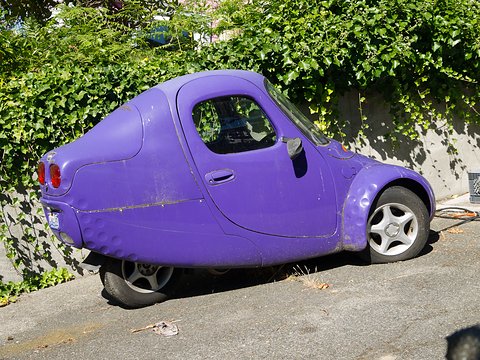

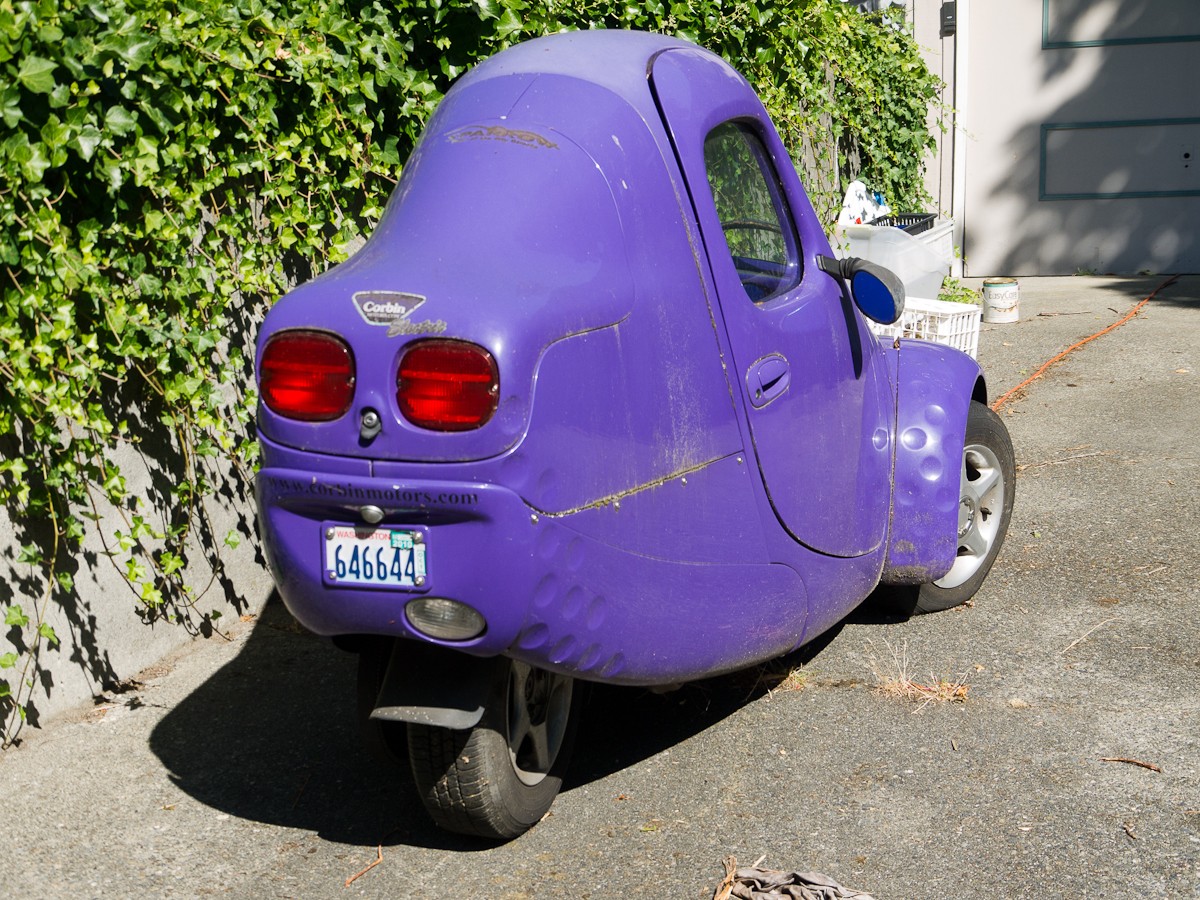

Faded purple single-seat three-wheeler with scuffed paint and alloy front wheel, parked on a driveway beside dense ivy.
A weathered purple Sparrow, with its Washington plate, against an ivy-covered wall in West Seattle in September 2012.Photo: c5karl, CC BY 2.0, via Flickr

Sources

Numbered as in the text

Mike Corbin’s story and the troubles with the batteries rest on one magazine-style blog, Makes That Didn’t Make It; the company dates and the Myers years on two English Wikipedia articles. No period road test has been found.

  1. “The Eclectic Electric Sparrow”, Makes That Didn’t Make It, 21 June 2020.
  2. English Wikipedia, Myers EV (the history of Corbin Motors and Myers Motors), read in full.
  3. English Wikipedia, Myers Motors NmG, read.
  4. “Hot news April 21 2003”, Powersports Business, known only from a quoted snippet; not read.
